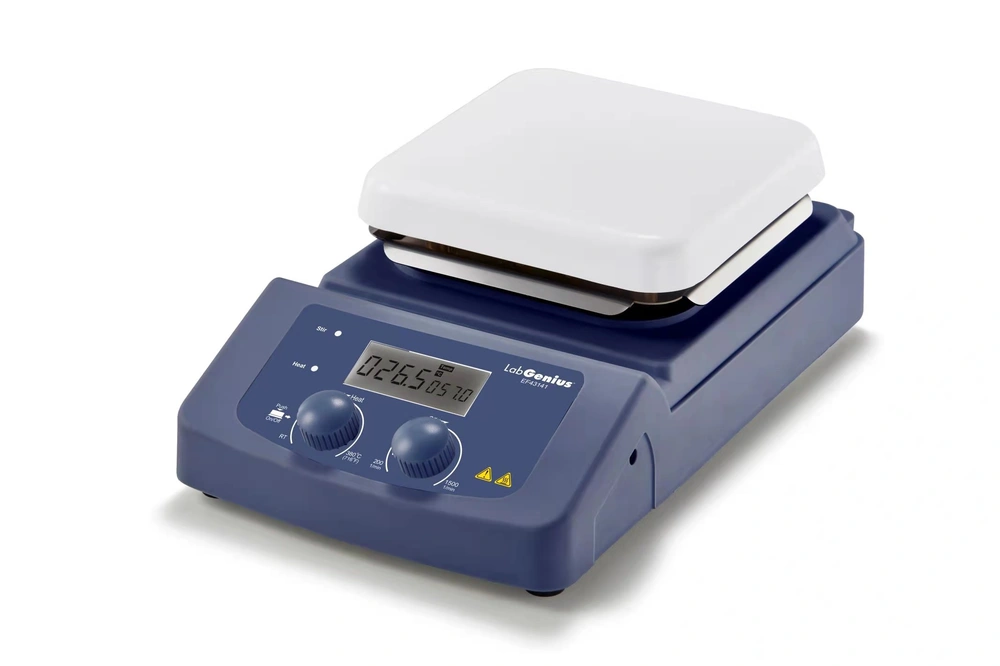

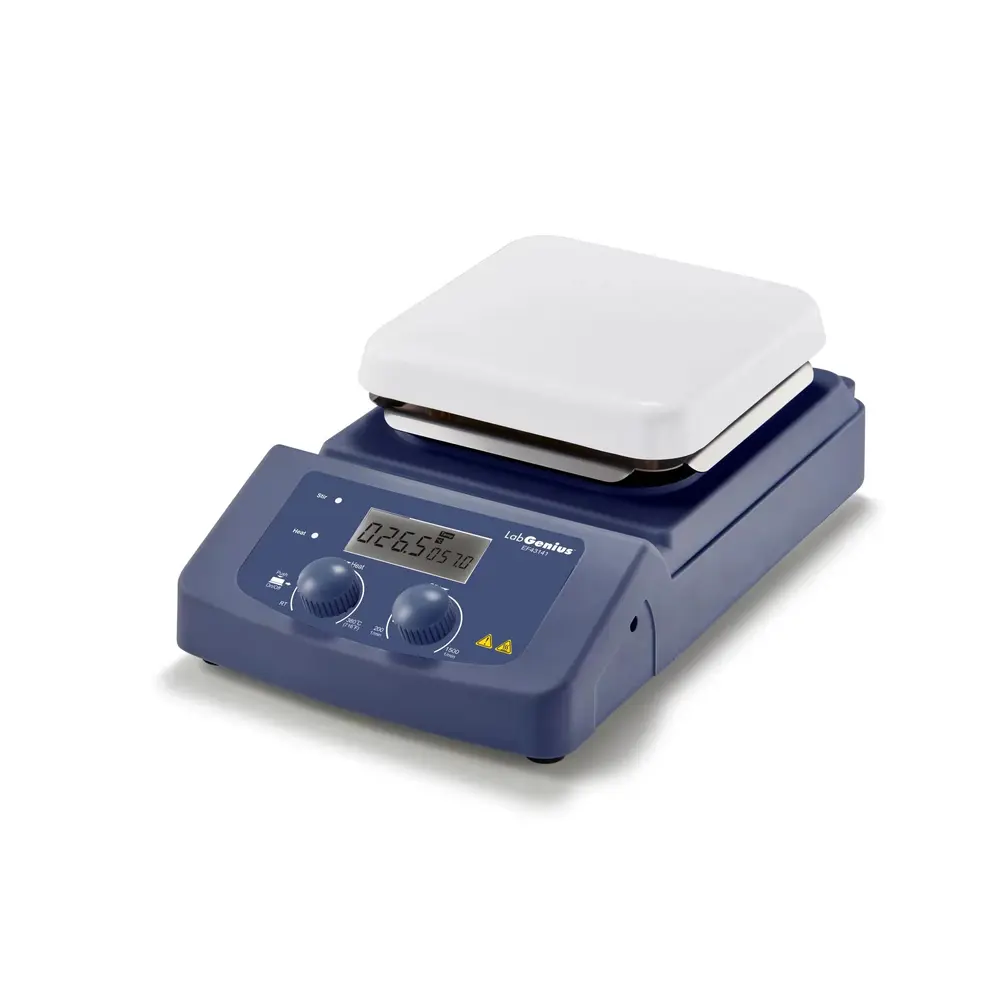

LabGenius Hot Plate Stirrers
LabGenius Hot Plate Stirrers are ideal for demanding applications such as chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc. The glass ceramic top provides excellent chemical-resistant performance and the most efficient heat transfer providing users with quick sample heating.
Key Features
- Choose from a maximum heating plate temperature of 380°C or 550°C
- A wide speed range up to 1500 rpm
- LED display for precise monitoring of temperature
- External temperature control is possible by connecting the PT1000 temperature sensor (sold separately) with accuracy of ±2°C
| Specifications for LabGenius Hot Plate Stirrer | ||
|---|---|---|
| 3389-01 | 3391-01 | |
| Work Plate Dimensions | 5" x 5" | 7" x 7" |
| Work Plate Material | Aluminum Cover with Ceramic Coating |
Glass ceramic |
| Motor Type | Brushless DC Motor | Shaded pole motor |
| Motor Rating Input | 2.4W | 15W |
| Motor Rating Output | 1.8W | 1.5W |
| Power | 510W | 1030W |
| Heating Output | 500W | 1000W |
| Voltage | 100-120/200-240V, 50/60Hz | |
| Stirring Positions | 1 | |
| Max Stirring Quantity (H2O) | 5L | 10L |
| Max Magnetic Bar (Length) | 50mm | 80mm |
| Speed Range | 200 - 1500 rpm | 0-1500rpm |
| Speed Display | LCD | Scale |
| Temperature Display | LCD | LED |
| Heating Temperature Range | Room temp.+5°C - 380°C | Room temp.-550°C, increment 5°C |
| Temperature Display Accuracy | ±0.1°C | ±1°C |
| External Temperature Sensor | PT1000 (accuracy ±0.5°C) | PT1000 (accuracy ±0.2) |
| Protection Class | IP21 | |
| WxDxH | 320 x 180 x 108mm | 215x360x112mm |
| Weight | 2.2kg | 4.5kg |
| Permissible Ambient Temperature & Humidity |
5-40°C; 80%RH | |
| Item No. | Alt. Part No. | Product Description | Accessory Description | Max. Temp | Speed Range | Top Plate Material | Top Plate Size | Unit of Measure | Your Cost | Purchase |
|---|---|---|---|---|---|---|---|---|---|---|
|
TEMPERATURE SENSOR *T*
DGN18900016
|
EF13737 | PT1000-A Temperature Sensor for digital hotplate models; length of 230mm | Each |
$49.50
|
||||||
|
Hot Plate Stirrer
3389-01
|
EF43141 | Hot Plate Stirrer | 380°C | 200-1500 RPM | Aluminum Cover with Ceramic Coating | 5" x 5" | Each |
$279.77
$247.09
12% discount
|
||
|
Hot Plate Stirrer
3391-01
|
EF43143 | Hot Plate Stirrer | 550°C | 0-1500 RPM | Glass Ceramic | 7" x 7" | Each |
$614.83
|
||
|
Support Rod
DGN18900017
|
EF13739 | Support Rod | For use with PT1000 Sensor | Each |
$69.30
$61.21
12% discount
|
